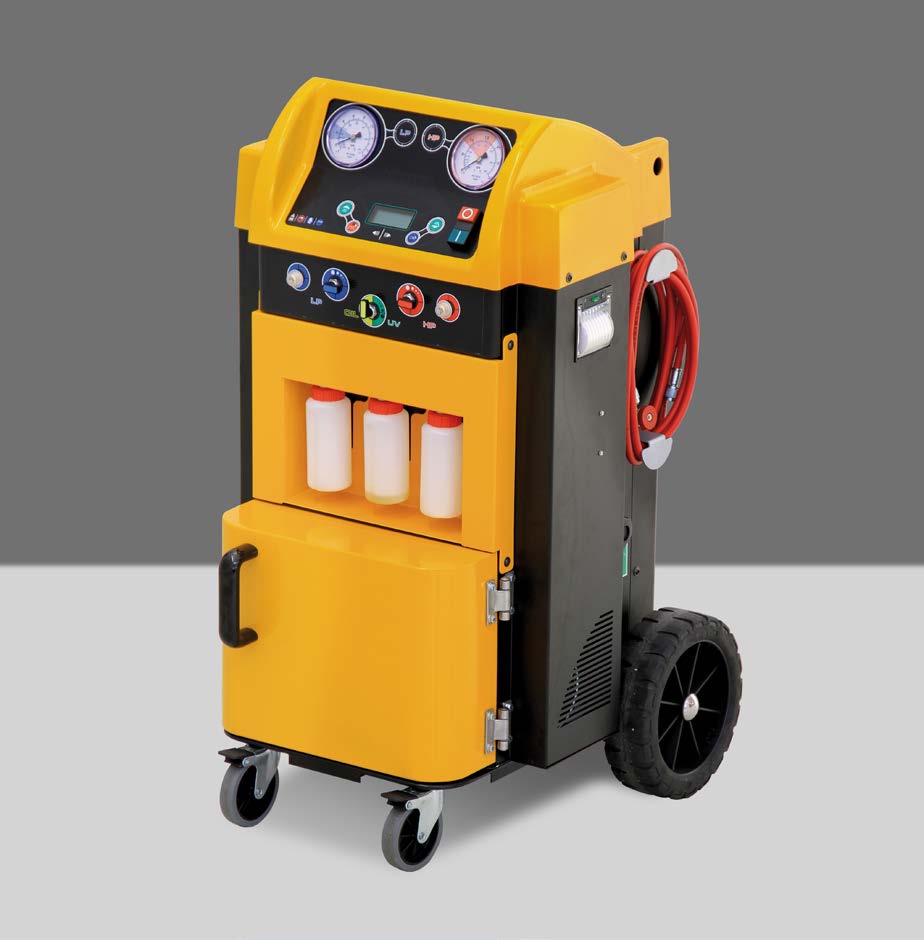

Draining & refilling station for ECS (PN: 416-9)

PN: 416-9
NSN: 4920-15-007-7908
Aircraft air-conditioning systems gas-recovery,used- oil discharge, vacuum, leakage check, oil injection, gas injection and discharge of incondensable gases.
Main Features
This equipment is a semi-automatic, multifunctional digital-setting system, manufactured to perform maintenance on aircraft air-conditioning systems like gas-recovery (R134A), used-oil discharge, vacuum, leakage check, oil injection, gas injection and discharge of incondensable gases.
Main Technical Characteristics
- Power supply: 220V – 50hz / 110V – 60hz; 900 W
- Vacuum flow rate. 72 Litres/min
- Filter absorption capacity (rate) 160 gr H2O
- System recovery rate 400 gr/min
- Vacuum limit 0.1 mbar
- Refrigerant cylinder capacity 12 lt
- Max operating temperature 50°C
- Minimum operating temperature 5°C
- Max. pressure of the pneumatic circuit 16 bar
Instrumentation
Digital function display
High pressure and Low pressure gauges, class .1.0 pulse free
Oil discharge valve / Oil discharge tank connection
New oil injection tank connection / New oil injection valve
UV tracer tank connection / UV tracer injection valve
HP and LP valve / quick coupling
Compatibility
Fully compatibility with different oil as PLANETELF PAG 244, SANDEN SP-10 for mechanically driven compressor, or oil for electrically driven compressor as TOTAL PLANETELF ACD 68M, ISO grade 68.
Accessories
Standard: power supply cable length 2m with plug 1P+ Neutral + GND 10A, type SCHUKO, HP & LP output flexible hoses, length 6 m with quick disconnect coupling.
Test stand textile cover, wood crate for transport; O&M manual, CoC, Test report
